Bigger projects demand bigger boilers. Heizomat’s range goes up to 2MW and can be installed in series. Reach out to our team to discuss the details on these boilers
RHK-AK 1.5MW & 2MW
1.5MW & 2MW
EASY TO RUN. FROM ANYWHERE.
Self Igniting, Feeding, Managing & Cleaning!
With Automation Features including:
- Self Ignition via an electric glowbar
- Automatic Fuel Feeding
- Fire Management for High Efficiency Performance
- Continuous Ash Removal and
- Heat Exchanger cleaning,
Heizomat takes the work out of wood heating and combines the hands free experience of modern heating with the clean energy and low cost heat of biomass.
EASY TO FEED. EVEN IMPERFECT FUEL
The Feed System built to handle Nails, Gravel & Oversized Fuel.
Much of Wood & Biomass Waste in Canada doesn’t meet the requirements of most other boilers and so you end up with jams, breakages & other issues.
Heizomat makes things easier for you by handling greater sizes and types of biomass as well as foreign objects including gravel & nails.
EASY TO MAINTAIN. KEEPING YOU PRODUCTIVE.
Near Zero Maintenance.
Customizable design allows you to locate and size your bunker and ash bin for easy access and to run untouched for a week, month or entire winter.
Sealed moving parts prevents wear from dust and dirt.
Self Cleaning features including Register Auger Cleaning and Ash Removal
Minimal maintenance completed in as little as 30 minutes twice per year provides a truly hands off experience.
BUILT TOUGH. LIKE A TANK.
Built To Last a Lifetime.
Heizomat Boilers are built to another standard. The German Standard.
The philosophy here is Don’t Cut Corners. Do it Right from the Start.
Build it Tough – Tank Tough. Build it Smart – Make it Easy.
SAFE. REST EASY.
Layers of Safety Protection
Multiple Layers of Safety Protection for your people, property, boiler & plumbing systems.
Safety Features that work with and without power.
EASY ON EARTH. BREATHE EASIER.
Optimized Combustion for Optimal Efficiency
Burn Clean and Green.
93%+ Efficiency and Minimal Emissions
Optional eFilters & Cyclones
TECH SPECS
Feeding Options
250mm / 9.8in Auger
De-ashing
Chain & Flight
Ash container
900L / 238gal
Rotary Valve
4 Chamber Sealed Backburn Protection
Fire Suppression Sprinkler
Heat Activated
Underpressure Monitoring
Auto Boiler Shutdown Feature
Infeed Auger Emptying
Automated on Boiler Shutdown - Burnback Protection
Safety Thermostat
Over Temperature Control
Low Water Cut Off
Control Panel Monitored with Boiler Shutdown Feature
Siemens Control Panel

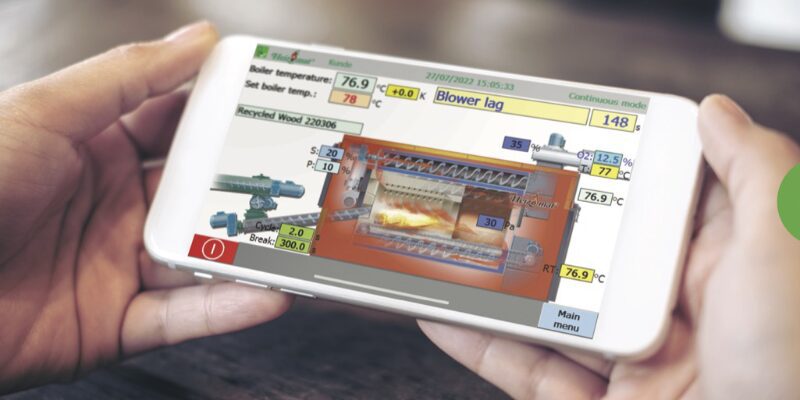

Touch Screen with Remote Monitoring
Lambda Sensor
Flue Gas Oxygen Monitoring
Notes:
1. Low Water Cut-off switch required to be supplied and installed by plumbing contractor
2. Internet connection to boiler required for Remote Access.
3. Dimensions and weights are approximate.
4. Heizomat Canada reserves the right to make changes to technical specifications. Contact us to confirm.
