For Efficiency, Automation and
Peace of Mind

Remote Monitoring

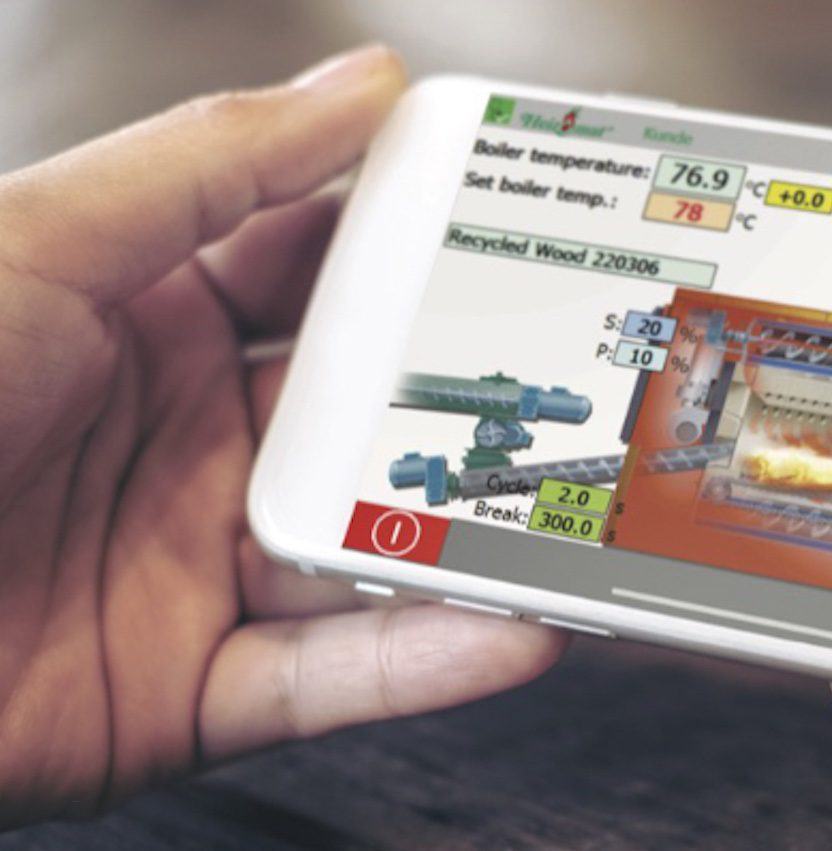

Remote monitoring via a secure network. See your boiler screen, check any reports and shut the boiler down remotely if you wish. This app gives you peace of mind and easy access.
This ties in nicely to our service guarantee. In the first year of your boiler ownership, we offer free remote monitoring of your boiler.
We keep an eye on its performance and support you with training and feedback on tuning and operation.
Automatic Ignition

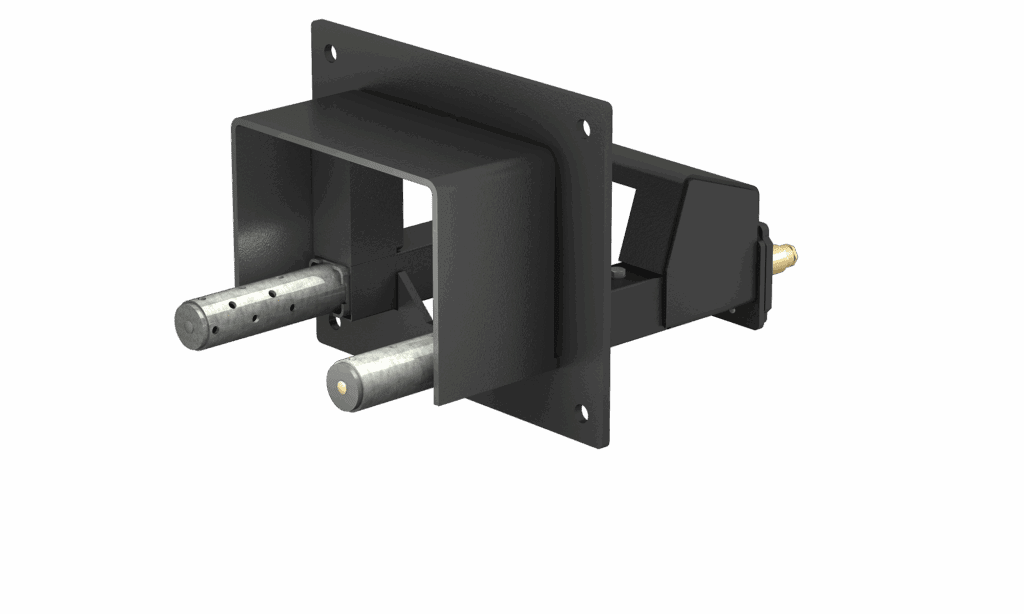

Robust Electrical Glow Bar(s) placed in the air jets are protected from ash and soot. Followed by controlled fire bed forming processes, they enable automatic boiler ignition.
Just press the Start Button and your boiler does the rest! These energy saving models use only .15kW per ignition.


Continuous Self Cleaning
Timed register auger cleaning and ash removal means very low maintenance time for your operator.

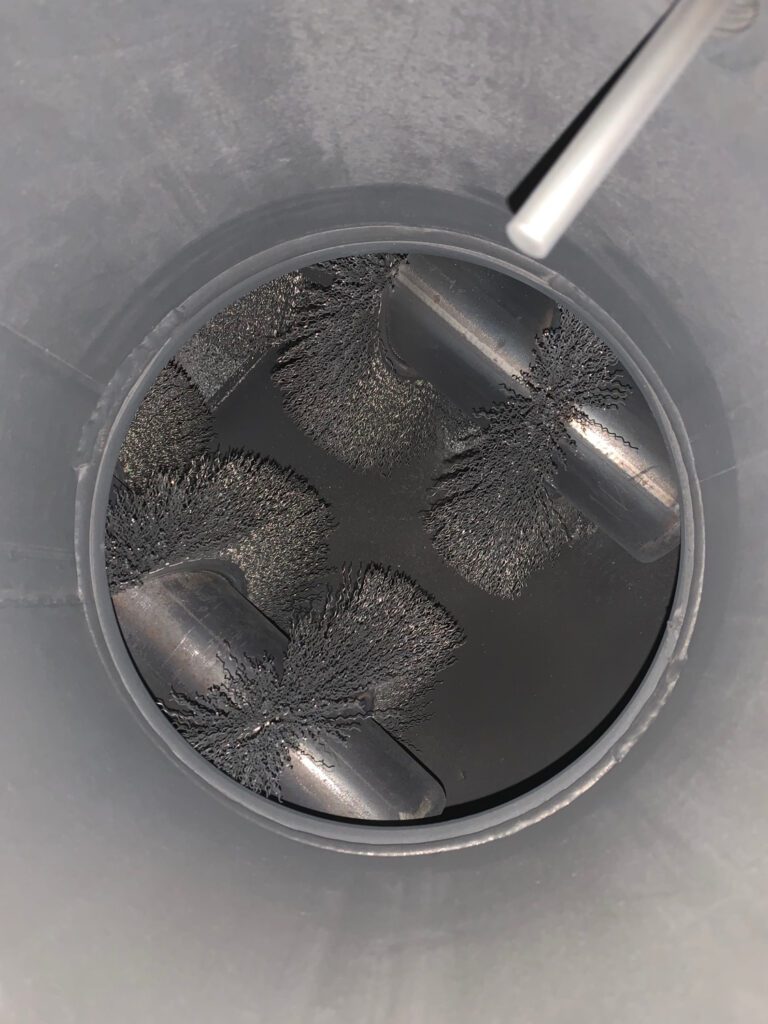

Customisable cleaning programs mean the boiler scrubs its own register tubes keeping your heat transfer optimal.
Ashes produced by the burning process and the cleaning of your register tubes gets seamlessly transferred to your ash bin.
Design your system around your availability so ash remove can be done weekly, monthly and for some even yearly.
Customisable Fuel Settings
Fuel types and sources can change and this can affect the way you need your boiler to react.
Heizomat controls enable simple data entry for custom fuel types. Each can be custom labelled and saved for a quick switch.
Spring Chip/Sawdust mix or Winter Hardwood mix? No problem. Just tine and save.


Operation Modes to suit your Heat Demand
Drip-fed Continuous Mode suits a steady heat demand. Once the boiler reaches full temperature and while it waits for more Heat Demand, the boiler will maintain minimal embers in the combustion chamber by slow feeding fuel and oxygen. When more heat is required, the boiler automatically ramps back up and gets back to work. Ramp up times are quick, to remain responsive to demand and fuel usage during standby time is minimised.
Glow Bar Ignition Mode is ideal when heat requirements are low. The boiler can be programmed to turn itself off when it is on standby. Glow bar re-ignition is then activated either by heat demand or a timer. The boiler reignites, builds a strong fire bed and sends heat out as needed. In shoulder or low heat demand seasons, this mode can be very fuel efficient.
Fuel Sensing and Fuel Control

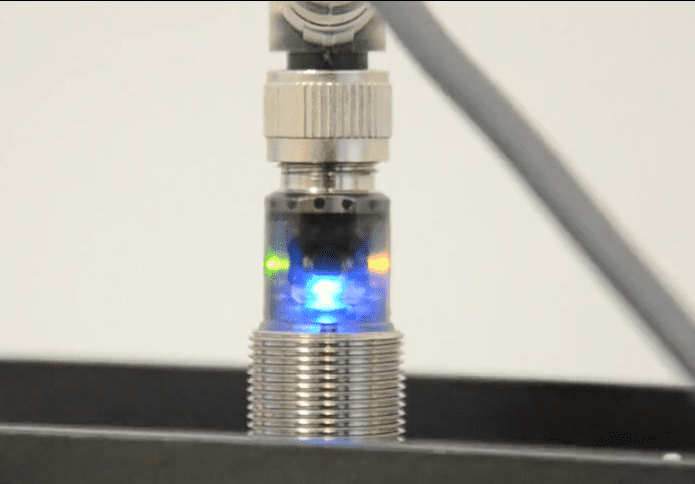

Using Ultrasonic technology, the boiler is able to ensure it has the fuel available when it needs it.
Customisable settings mean the boiler can quickly and efficiently create the optimal burn.
Variable speed fans and a well designed oxygen supply system, create a responsive and highly efficient flame.
Fuel quality and type can vary. With a few simple inputs, Heizomat Boilers make it easy to get the most out of your fuel.


Siemens Simatic HMI Touch Screen
Visual display showing key boiler data
Easy to follow menus enable customisable programming to suit you Heat Demand and Fuel
Buffer Management
Reports
Remote monitoring via web and phone app
Alarm notifications via email or text
Smart. Simple. Mechanical. Reliable.
It’s the Heizomat Way.
